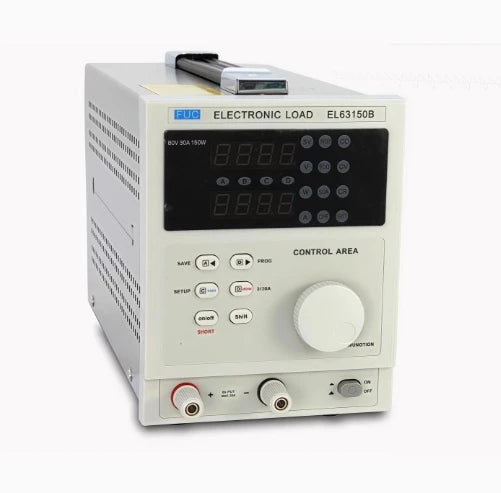

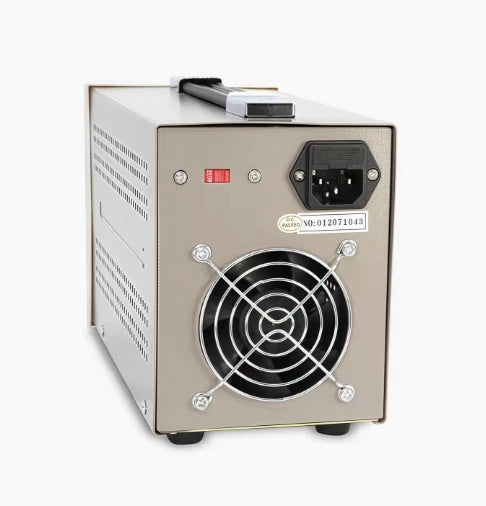

Electronic Load

Electronic Load

Regular price KSh12,639.36
Regular price KSh12,639.36 Sale price KSh12,639.36
Sale Sold out

SPECIFICATIONS

150W: 60v30a

Brand Name: NoEnName_Null

Current: other

Hign-concerned Chemical: None

Origin: Mainland China


Here is the translation of the provided performance parameters into english:


---


### 1.**input range**

- **temperature range**: 0~40℃

- **voltage range**: 0~60v

- **current range**: 1ma~30a

- **power range**: maximum 150w


### 2.**load stability**

- **voltage range**:

- 0~10v: ±(0.05% + 0.1% fs), resolution 1mv

- 0~60v: ±(0.05% + 0.1% fs), resolution 10mv

- **current range**:

- 0~3a: ±(0.1% + 0.1% fs), resolution 1ma

- 0~30a: ±(0.1% + 0.15% fs), resolution 10ma


### 3.**constant voltage stability**

- **voltage range**: 0.1~60v

- **accuracy**: ±(0.05% + 0.1% fs)

- **resolution**:10mv


### 4.**constant current stability**

- **current range**:

- 0~3a: ±(0.1% + 0.1% fs), resolution 1ma

- 0~30a: ±(0.1% + 0.15% fs), resolution 10ma


### 5.**constant resistance stability**

- **resistance range**:

- 0.1~10ω: ±(1% + 0.8% fs), resolution 0.001ω

- 10~99ω: ±(1% + 0.8% fs), resolution 0.01ω

- 100~999ω: ±(1% + 0.8% fs), resolution 0.1ω

- 1k~4kω: ±(1% + 0.8% fs), resolution 1ω

- **condition**: input voltage ≥10% of full scale, input current ≥10% of full scale


### 6.**current measurement**

- **current range**:

- 0~3a: ±(0.1% + 0.1% fs), resolution 1ma

- 0~30a: ±(0.1% + 0.15% fs), resolution 10ma


### 7.**voltage measurement**

- **voltage range**:

- 0~10v: ±(0.05% + 0.1% fs), resolution 1mv

- 0~60v: ±(0.05% + 0.1% fs), resolution 10mv


### 8.**power measurement**

- **power range**:

- 0~10w: ±(1% + 0.5% fs), resolution 1mw

- 0~99w: ±(1% + 0.5% fs), resolution 10mw

- 100~150w: ±(1% + 0.5% fs), resolution 100mw

- **condition**: input voltage ≥10% of full scale, input current ≥10% of full scale


### Summary:

- **accuracy**: voltage and current measurements have high accuracy, with voltage accuracy at ±(0.05% + 0.1% fs) and current accuracy at ±(0.1% + 0.1% fs) or ±(0.1% + 0.15% fs).

- **resolution**: voltage and current resoluutions are 1mv/10mv and 1ma/10ma, respectively, suitable for high-precision measurements.

- **power measurement**: power measurement accuracy is ±(1% + 0.5% fs), suitable for testing small to medium-power devices.

- **resistance measurement**: resistance measurement accuracy is ±(1% + 0.8% fs), suitable for low to medium resistance measurements.


这些参数 indicates that the device is suitable for high-precision voltage、 current、 power and resistance measurements,使其成为实验室或工业环境中的 precision testing的理想选择。


---


Let me know if you need further assistance!
