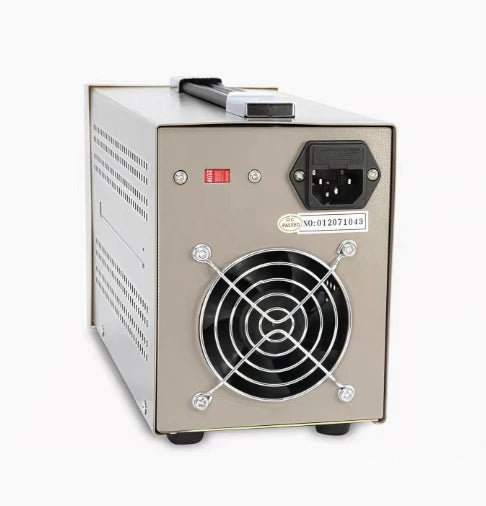

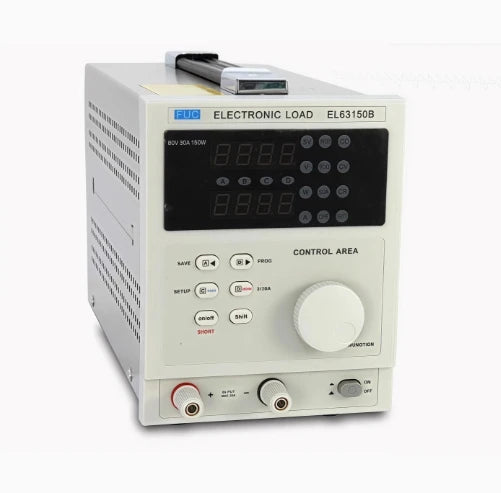

Electronic Load
Electronic Load
SPECIFICATIONS
150W: 60v30a
Brand Name: NoEnName_Null
Current: other
Hign-concerned Chemical: None
Origin: Mainland China
Here is the translation of the provided performance parameters into english:
---
### 1.**input range**
- **temperature range**: 0~40℃
- **voltage range**: 0~60v
- **current range**: 1ma~30a
- **power range**: maximum 150w
### 2.**load stability**
- **voltage range**:
- 0~10v: ±(0.05% + 0.1% fs), resolution 1mv
- 0~60v: ±(0.05% + 0.1% fs), resolution 10mv
- **current range**:
- 0~3a: ±(0.1% + 0.1% fs), resolution 1ma
- 0~30a: ±(0.1% + 0.15% fs), resolution 10ma
### 3.**constant voltage stability**
- **voltage range**: 0.1~60v
- **accuracy**: ±(0.05% + 0.1% fs)
- **resolution**:10mv
### 4.**constant current stability**
- **current range**:
- 0~3a: ±(0.1% + 0.1% fs), resolution 1ma
- 0~30a: ±(0.1% + 0.15% fs), resolution 10ma
### 5.**constant resistance stability**
- **resistance range**:
- 0.1~10ω: ±(1% + 0.8% fs), resolution 0.001ω
- 10~99ω: ±(1% + 0.8% fs), resolution 0.01ω
- 100~999ω: ±(1% + 0.8% fs), resolution 0.1ω
- 1k~4kω: ±(1% + 0.8% fs), resolution 1ω
- **condition**: input voltage ≥10% of full scale, input current ≥10% of full scale
### 6.**current measurement**
- **current range**:
- 0~3a: ±(0.1% + 0.1% fs), resolution 1ma
- 0~30a: ±(0.1% + 0.15% fs), resolution 10ma
### 7.**voltage measurement**
- **voltage range**:
- 0~10v: ±(0.05% + 0.1% fs), resolution 1mv
- 0~60v: ±(0.05% + 0.1% fs), resolution 10mv
### 8.**power measurement**
- **power range**:
- 0~10w: ±(1% + 0.5% fs), resolution 1mw
- 0~99w: ±(1% + 0.5% fs), resolution 10mw
- 100~150w: ±(1% + 0.5% fs), resolution 100mw
- **condition**: input voltage ≥10% of full scale, input current ≥10% of full scale
### Summary:
- **accuracy**: voltage and current measurements have high accuracy, with voltage accuracy at ±(0.05% + 0.1% fs) and current accuracy at ±(0.1% + 0.1% fs) or ±(0.1% + 0.15% fs).
- **resolution**: voltage and current resoluutions are 1mv/10mv and 1ma/10ma, respectively, suitable for high-precision measurements.
- **power measurement**: power measurement accuracy is ±(1% + 0.5% fs), suitable for testing small to medium-power devices.
- **resistance measurement**: resistance measurement accuracy is ±(1% + 0.8% fs), suitable for low to medium resistance measurements.
这些参数 indicates that the device is suitable for high-precision voltage、 current、 power and resistance measurements,使其成为实验室或工业环境中的 precision testing的理想选择。
---
Let me know if you need further assistance!
